Product Summary

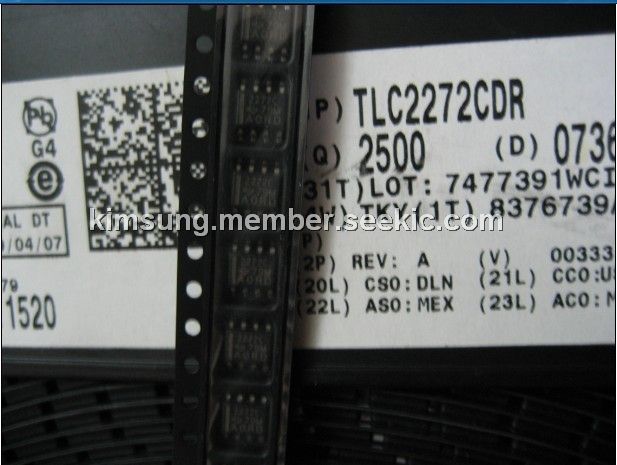

The TLC2272CDR is a dual and quadruple operational amplifier from Texas Instruments. It offers 2 MHz of bandwidth and 3 V/µs of slew rate for higher speed applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage:8 V; (2)Supply voltage:-8 V; (3)Differential input voltage:±16 V; (4)Input voltage range:VDD- -0.3V to VDD+; (5)Input current:±5 mA; (6)Output current:±50 mA ; (7)Total current into:±50 mA; (8)Total current out of VDD-:±50 mA; (9)Duration of short-circuit current at (or below) 25℃:unlimited .
Features
Features: (1)Output Swing Includes Both Supply Rails; (2)Low Noise:9 nV/√Hz Typ at f = 1 kHz; (3)Low Input Bias Current:1 pA Typ; (4)Fully Specified for Both Single-Supply and Split-Supply Operation; (5)Common-Mode Input Voltage Range Includes Negative Rail; (6)High-Gain Bandwidth:2.2 MHz Typ; (7)High Slew Rate:3.6 V/μs Typ.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC2272CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual R/R Op Amp |
Data Sheet |
|
|
||||||||||||
|
TLC2272CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual R/R Op Amp |
Data Sheet |
|
|
||||||||||||
