Product Summary

The AD620ARZ is a low cost, high accuracy instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000.

Parametrics

Absolute maximum ratings: (1)Supply Voltage:±18V ; (2)Internal Power Dissipation:650 mW ; (3)Input Voltage (Common-Mode):±VS ; (4)Differential Input Voltage:25 V ; (5)Output Short-Circuit Duration:Indefinite ; (6)Operating Temperature Range:-40℃ to +85℃; (7)Lead Temperature Range(Soldering 10 seconds):300℃.

Features

Features: (1)Gain set with one external resistor (Gain range 1 to 10,000) ; (2)Wide power supply range (±2.3 V to ±18 V) ; (3)Higher performance than 3 op amp IA designs ; (4)Available in 8-lead DIP and SOIC packaging ; (5)Low power, 1.3 mA max supply current ; (6)50 μV max, input offset voltage ; (7)0.6 μV/℃ max, input offset drift ; (8)1.0 nA max, input bias current ; (9)100 dB min common-mode rejection ratio (G = 10) ; (10)Low noise ; (11)120 kHz bandwidth (G = 100) ; (12)15 μs settling time to 0.01%.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD620ARZ
AD620ARZ

IC AMP INST LP LN 18MA 8SOIC
Data Sheet
0-1: $4.67
1-10: $4.20
10-100: $3.46
100-250: $3.18
250-500: $2.90
500-1000: $2.52
1000-2500: $2.49
AD620ARZ-REEL
AD620ARZ-REEL

IC AMP INST LP LN 18MA 8SOIC
Data Sheet
0-2500: $2.49

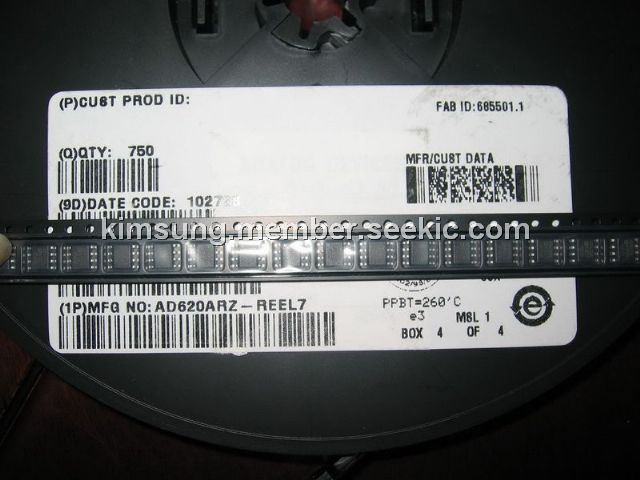

AD620ARZ-REEL7
AD620ARZ-REEL7

IC AMP INST LP LN 18MA 8SOIC
Data Sheet
0-1: $4.82
1-10: $4.33
10-25: $3.94
25-100: $3.57
100-250: $3.27
