Product Summary

The Texas Instruments MSP430F413IPM is a ultra-low-power microcontroller, which consists of several devices featuring different sets of peripherals targeted for various applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. Its typical applications include sensor systems that capture analog signals, convert them to digital values, and process the data and transmit them to a host system. The comparator and timer make the configurations ideal for industrial meters, counter applications, handheld meters, etc.

Parametrics

Absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature: Unprogrammed device: -55℃ to 150℃; (5)Programmed device: -40℃ to 85℃.

Features

Features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow Power Consumption: Active Mode: 200 μA at 1 MHz, 2.2 V; Standby Mode: 0.7μA; Off Mode (RAM Retention): 0.1 μA; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in Less Than 6 μs; (5)Frequency-Locked Loop (FLL+); (6)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (7)16-Bit Timer_A With Three or Five Capture/Compare Registers; (8)Integrated LCD Driver for 96 Segments; (9)On-Chip Comparator; (10)Brownout Detector; (11)Supply Voltage Supervisor/Monitor-Programmable Level Detection on MSP430F415/417 Devices Only; (12)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse; (13)Bootstrap Loader in Flash Devices.

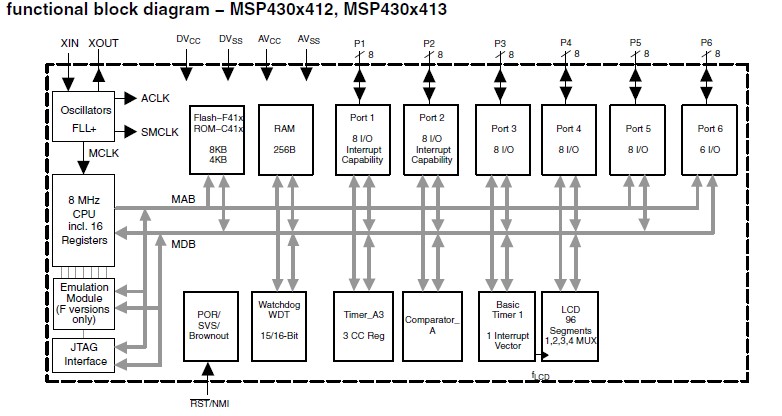

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MSP430F413IPM
MSP430F413IPM
Texas Instruments
16-bit Microcontrollers (MCU) 8kB Flash 256B RAM Comp/96 segment LCD
Data Sheet
0-1: $1.82
1-10: $1.64
10-25: $1.46
25-50: $1.37
MSP430F413IPMR
MSP430F413IPMR
Texas Instruments
16-bit Microcontrollers (MCU) 8kB Flash 256B RAM Comp/96 segment LCD
Data Sheet
0-1: $1.82
1-10: $1.64
10-25: $1.46
25-50: $1.37
