Product Summary
The SLVU2.8.TCT transient voltage suppressor is designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges. The device is constructed using Semtech proprietary EPD process technology. The SLVU2.8.TCT features an integrated low capacitance compensation diode that allows the device to be configured to protect one unidirectional line or, when paired with a second SLVU2.8.TCT, two high-speed line pairs. The low capacitance design of the SLVU2.8.TCT means signal integrity is preserved in high-speed applications such as 10/100 Ethernet.
Parametrics
Absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs), Ppk: 400 Watts; (2)Peak Pulse Current (tp = 8/20μs), IPP: 24 A; (3)Lead Soldering Temperature, TL: 260 (10 seconds) ℃; (4)Operating Temperature, TJ: -55 to +125 ℃; (5)Storage Temperature, TSTG: -55 to +150 ℃.
Features
Features: (1)400 Watts peak pulse power (tp = 8/20μs); (2)Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) 24A (8/20μs); (3)One device protects one unidirectional line; (4)Two devices protect two high-speed line pairs; (5)Low capacitance; (6)Low leakage current; (7)Low operating and clamping voltages; (8)Solid-state EPD TVS process technology.

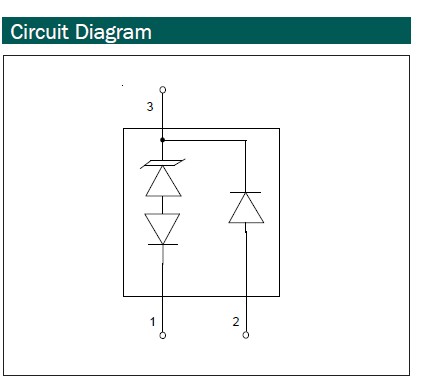

Diagrams
 |
