Product Summary
The UDA1341TS is a single-chip stereo Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) with signal processing features employing bitstream conversion techniques. Its fully integrated analog front end, including Programmable Gain Amplifier (PGA) and a digital Automatic Gain Control (AGC). Digital Sound Processing (DSP) featuring makes the device an excellent choice for primary home stereo MiniDisc applications, but by virtue of its low power and low voltage characteristics it is also suitable for portable applications such as MD/CD boomboxes, notebook PCs and digital video cameras.
Parametrics
Absolute maximum ratings: (1)VDD, supply voltage: 5.0V max; (2)Txtal(max), maximum crystal temperature: 150℃ max; (3)Tstg, storage temperature: -65 to +125℃; (4)Tamb, operating ambient temperature: -20 to +85℃.
Features
Features: (1)Low power consumption; (2)3.0 V power supply; (3)256fs, 384fs or 512fs system clock frequencies (fsys); (4)Small package size (SSOP28); (5)Partially pin compatible with UDA1340M and UDA1344TS; (6)Fully integrated analog front end including digital AGC; (7)ADC plus integrated high-pass filter to cancel DC offset; (8)ADC supports 2 V (RMS value) input signals; (9)Overload detector for easy record level control; (10)Separate power control for ADC and DAC; (11)No analog post filter required for DAC; (12)Easy application.

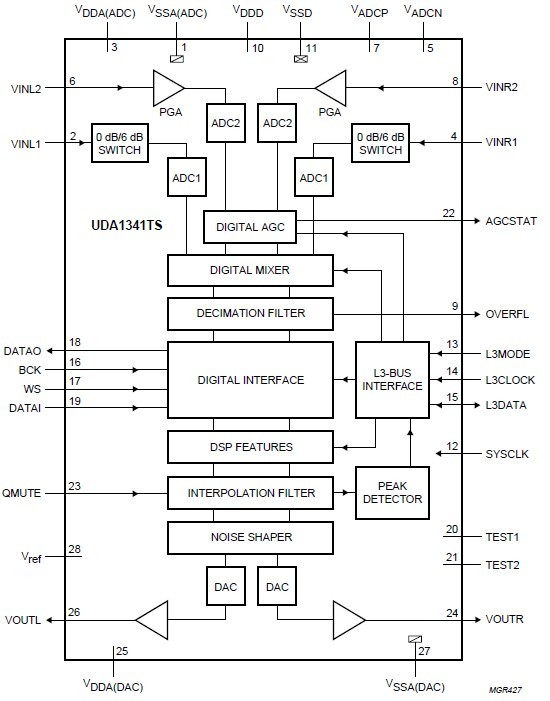

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDA1341TS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
UDA1341TS/N1,512 |
NXP Semiconductors |
Audio CODECs AUDIO CODEC MINIDISC |
Data Sheet |
|
|
||||||||||||
|
UDA1341TS/N1,518 |
NXP Semiconductors |
Audio CODECs MINIDISC AUDIO CODEC |
Data Sheet |
|
|
||||||||||||
|
UDA1341TSDB |
NXP Semiconductors |
Audio CODECs AUDIO CODEC MINIDISC |
Data Sheet |
Negotiable |
|
||||||||||||
